Anti-Freeze Valves
•Max Inlet Pressure (static): 10 Bar
•Medium: Water
•Sensitivity: ± 1°C
•Opening Temperature: 3°C
•Closing Temperature: 4°C
•Working Temperature Range: 0 to 80°C
•Ambient Temperature Range: -30 to 60°C
•Max Discharge Flow Rate @ 3 Bar: 1.5 L/H
•Kv: G1″(55m³/h) G1 ¼”(70m³/h) 28mm(64m³/h)
•Valve Body: UNI EN 12165 CW617N
•Spring: Stainless Steel
•Internal Seals: EPDM PEROX
•Internal Parts: UNI EN 12164 CW61

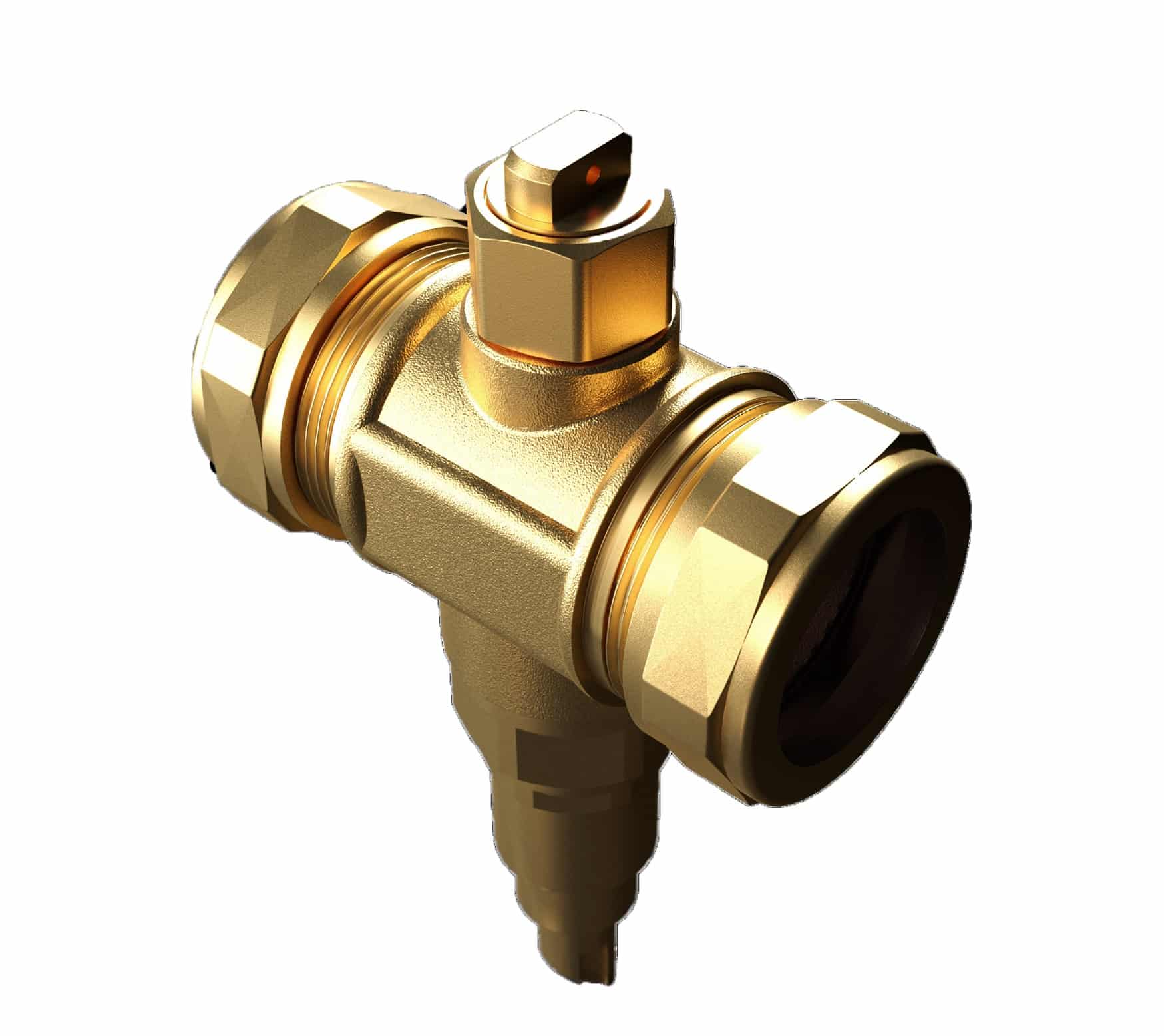

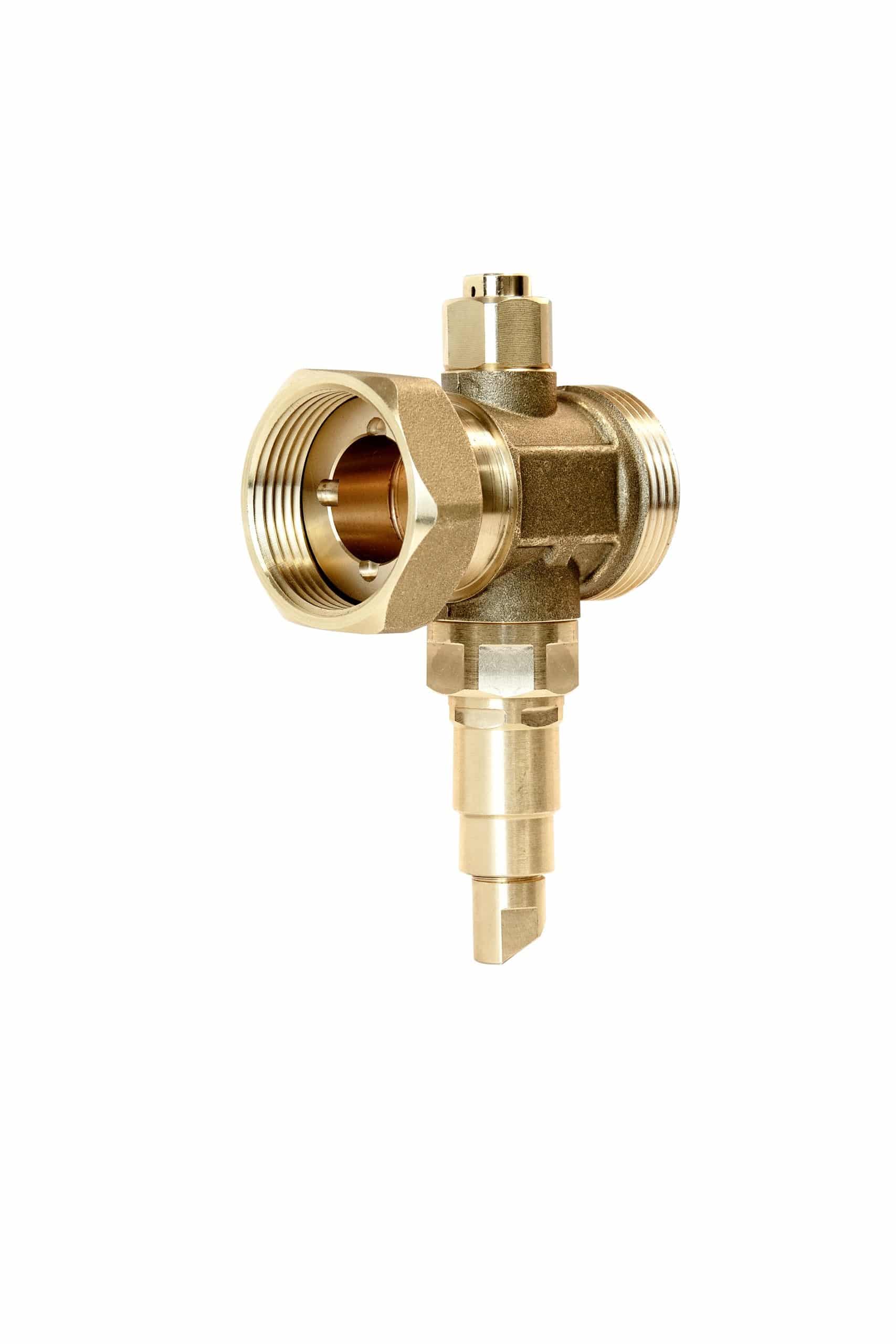

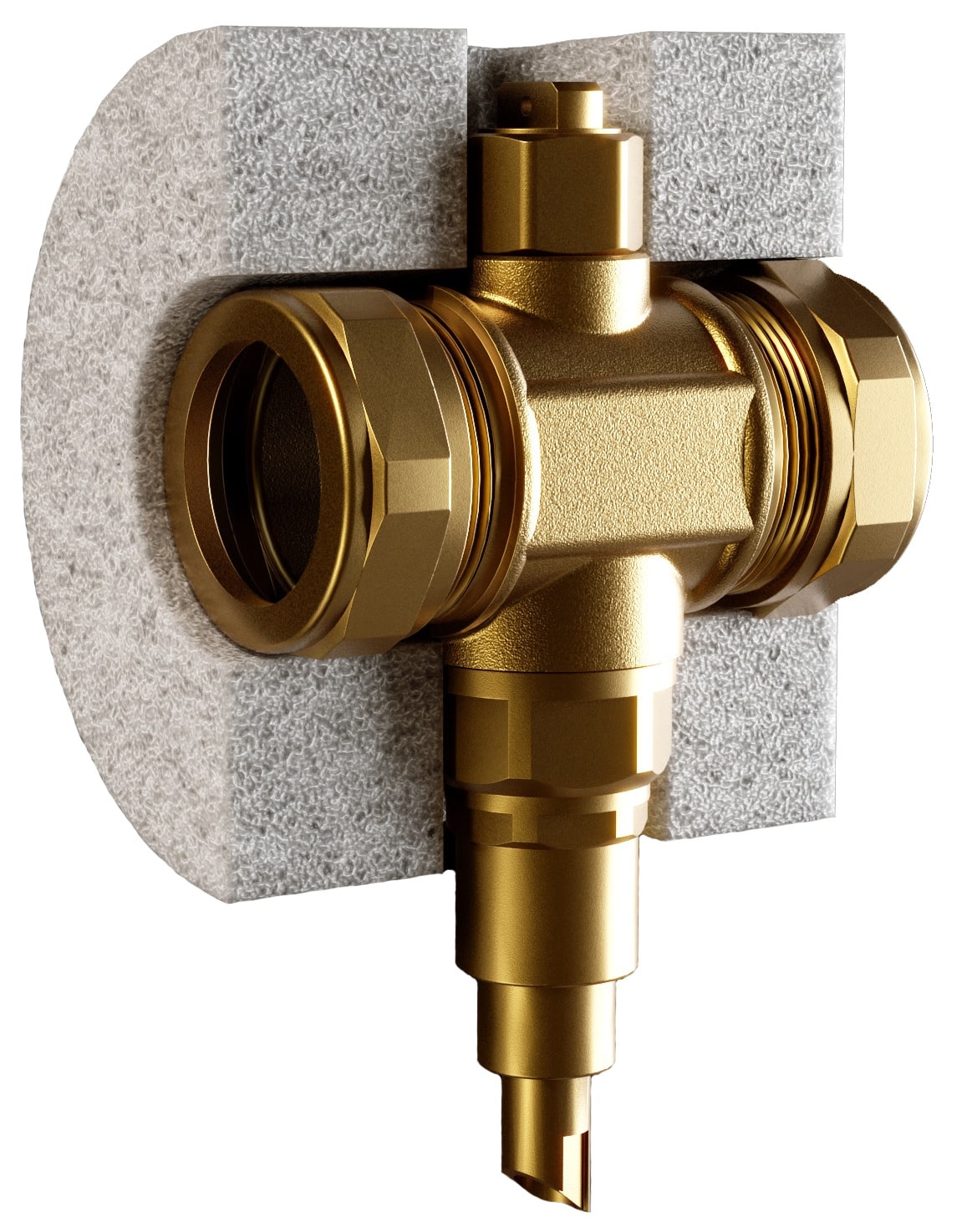

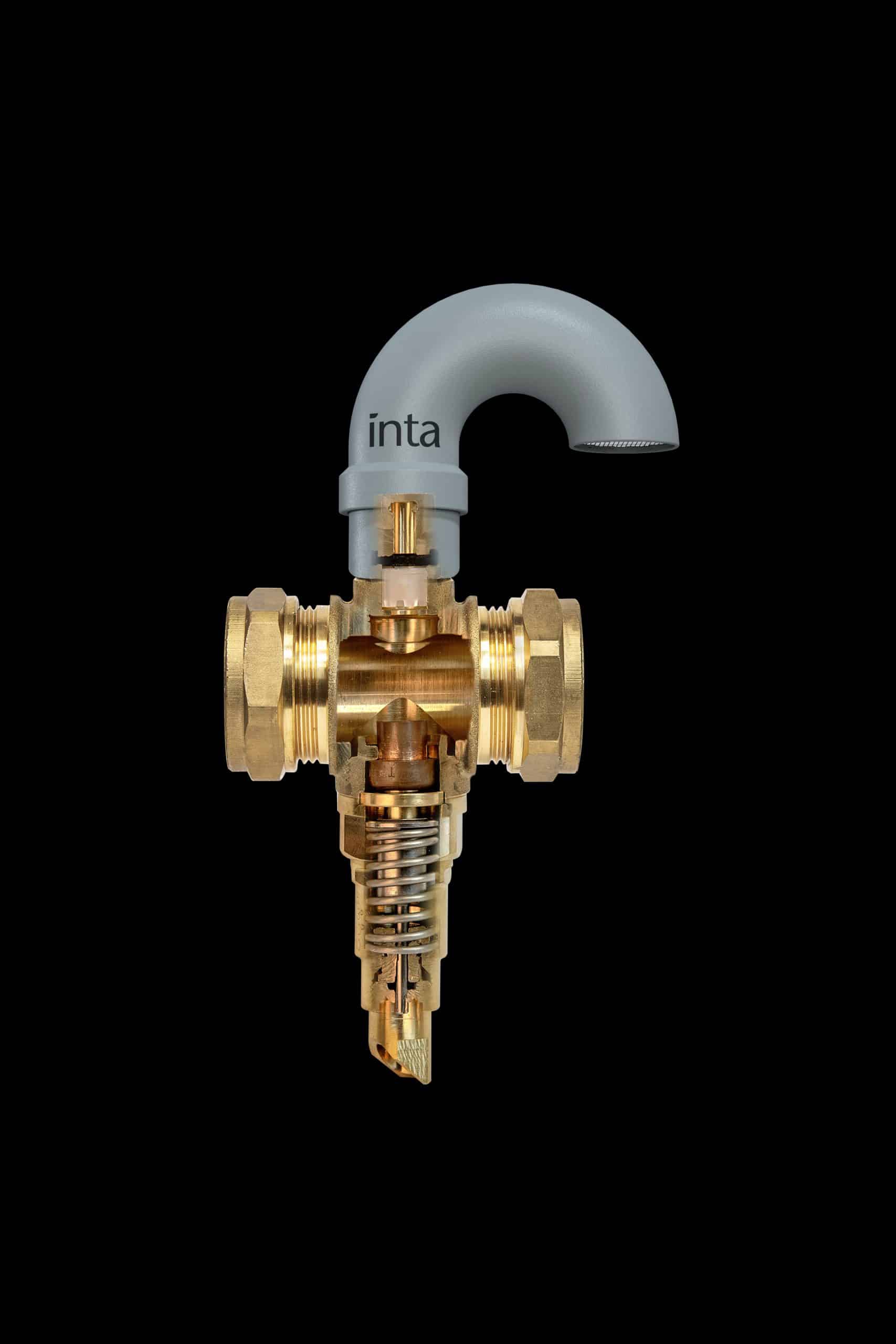

The Inta Zero is a unique anti-freeze valve designed and engineered to protect heat pump systems that are operating with water.
Designed to discharge when the system water temperature drops to 3°C, preventing ice from forming in the heat pump circuit that could cause breakdown or costly damage to the system
